Advanced Induction Cylinder Head Development
100% CNC'd 219cc GM LS1 Cylinder Head Package

GM's #241 5.7L LS1 head casting is one of the most commonly available GM castings out there.  While often swapped out in favor of 243's, the venerable 241 is still capable of producing great power for the $ considering how cheaply the castings can be obtained.  At only 15 cc over stock volume this particular port sees gains of over 50 cfm on the intake utilizing a factory GM 2.00" valve.  Our 241 CNC work has found success amongst enthusiasts looking for significant gains and no losses down low without sacrificing quality or longevity.  Typical gains for our CNC work are in the 40rwhp SAE range over the as cast 241, and many 346cid LS1's manage 420-460rwhp SAE with bolt-ons and one of our daily drivable HR cam grinds.

Pricing is for work applied to a pair (2) of cylinder head castings and components YOU supply unless otherwise noted.  We are happy to build your heads with whichever spring kit, valve, etc. you would like.  Please keep in mind if components you provide require additional time on our part, we must bill for that.


Machining & Labor Operations:
  • 100% CNC Ported Intake, Exhaust, & Combustion Chambers
  • 100% CNC Professional Competition Quality Valvejob
  • Valves Cleaned & Precision Ground (whether using new aftermarket or re-using OE GM
  • PCD milled to ensure flatness, surface finish, & achieve desired chamber volume (60 - 72 cc)
  • Customer can specify milling to an Available P2V Clearance relative to stock (e.g. .018" less P2V)
  • Intake Flange, Exhaust Flange, and Valve Cover Rail PCD Milled to new surface finish specs
  • Thorough Inspection of Castings, Components, Bind Heights for your individual set of springs, etc.
  • Complete Cleaning/Prep including Bead Blasting + UltraSonic to ensure internal passages are clear & free of debris
  • Deburring of Entire Casting + fine detail softening of all edges in & around combustion chambers
  • Professionally Setup & Assembled for your individual application - Ready to bolt-on & Run
Machining & Labor Cost: $1795

Please Contact Us for shipping & turnaround quotes.


Labor and Component Options:

Note: GM heads often show so little guide wear that they do not need to be replaced.  In the event they do require attention due to wear or your application, we have several options.

Bronze Guide Liners installed & honed to ideal clearances to refurbish worn out guides. - Cost: $250
Replace OEM guides with Ai Pro Racing Quality Full Bronze Guides & hone to ideal clearances - Cost: $295
Replace OEM guides with new Powdered Metal Guides & hone to ideal clearances - Cost: $250

PSI 1511 MaxLife Endurance Spring Kit w/ OEM Replacement Seals. - Cost: $340
PSI 1516 High Lift MaxLife Endurance Spring Kit w/ OEM Replacement Seals. - Cost: $380
Manley 23622 Titanium Retainers for OEM, PAC, PSI, etc. beehive style springs - Cost: $195
BTR .660" Polished Dual Spring Kit w/ locators, viton seals, & Steel Retainers - Cost: $230
BTR .660" Polished Dual Spring Kit w/ locators, viton seals, & Titanium Retainers - Cost: $300
Manley Nextek .660" rated shot peened & polished Dual Spring Kit w/ Titanium Retainers - Cost: $400
Manley Nextek .700" rated shot peened & polished Dual Spring Kit w/ Titanium Retainers - Cost: $660
Manley Nextek .800" rated shot peened & polished Dual Spring Kit w/ Titanium Retainers - Cost: $700

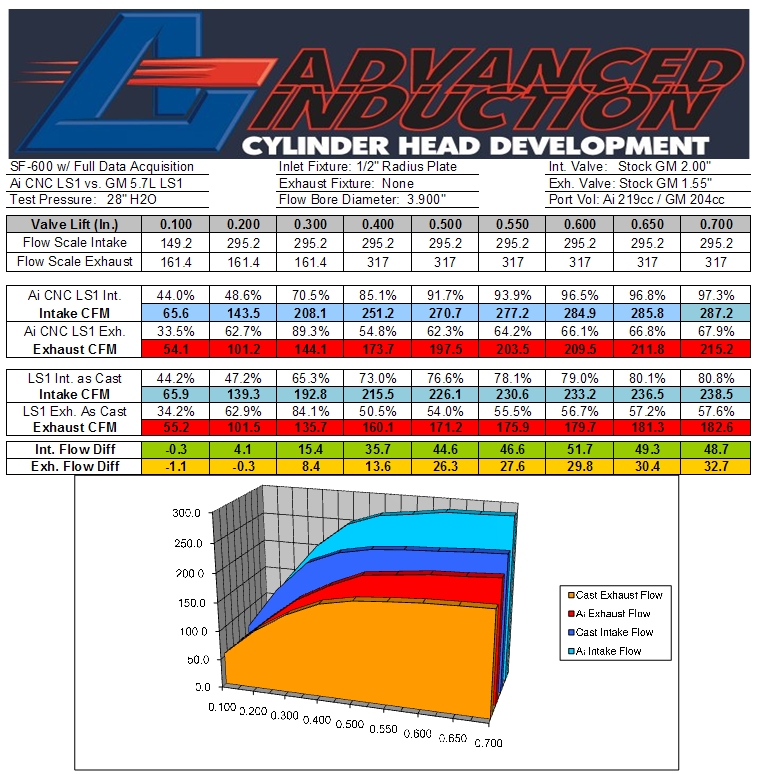

Dyno, Flow Bench, and Track Results:
